Specifications

• Dimensions

  add remove
  • Length:
    92.9 in
  • Seat height, unladen:
    28.1 in
  • Rake (steering head):
    28
  • Trail:
    5.7 in
  • Wheelbase:
    63.6 in
  • Tires, front specifications:
    110/90B19,62H,BW
  • Tires, rear specifications:
    180/70B16,77H,BW
  • Fuel Capacity:
    5.0 gal
  • Oil capacity:
    5 qt.
  • Weight, as shipped:
    644 lbs
  • Weight, in running order:
    670 lb
  • Tire, type:
    Michelin® Scorcher 31, front and rear
• Engine

  add remove

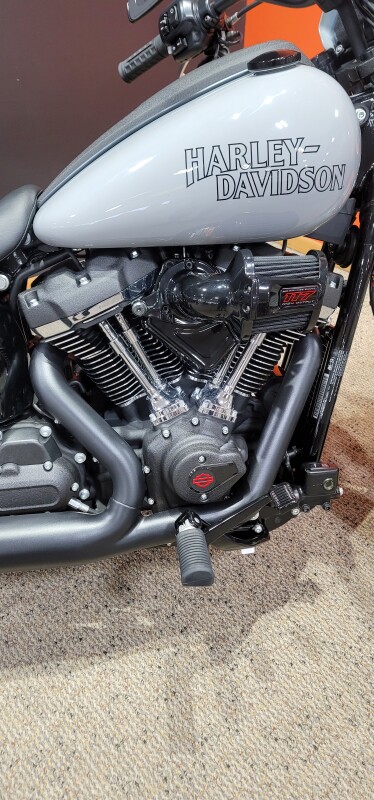

  • Engine:
    Milwaukee-Eight® 117 High-Output
  • Bore:
    4.1 in
  • Stroke:
    4.5 in
  • Displacement:
    117.35 in³
  • Compression ratio:
    10.3:1
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust:
    2-into-1; catalyst in header
• Performance

  add remove
  • Engine torque testing method:
    J1349
  • Engine torque:
    128.3 ft-lb
  • Engine torque (RPM):
    4000
  • Horsepower:
    114 HP / 85 kW @ 5000 rpm
  • Lean angle, right (deg.):
    31.3
  • Lean angle, left (deg.):
    31.3
  • Fuel economy testing method:
    Estimated City/Hwy
  • Fuel economy:
    47 mpg (5 l/100km)
• Powertrain

  add remove
  • Primary drive:
    Chain, 34/46 ratio
  • Gear ratios (overall) 1st:
    9.311
  • Gear ratios (overall) 2nd:
    6.454
  • Gear ratios (overall) 3rd:
    4.793
  • Gear ratios (overall) 4th:
    3.882
  • Gear ratios (overall) 5th:
    3.307
  • Gear Ratios (overall) 6th:
    2.79
• Chassis

  add remove
  • Front fork:
    Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
  • Rear shocks:
    Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
  • Wheels, front type:
    Dark bronze, Radiate cast aluminum wheel
  • Wheels, rear type:
    Dark bronze, Radiate cast aluminum wheel
  • Brakes, type:
    Front and rear black, Split 7-spoke floating rotors
  • Brakes, caliper type:
    4-piston fixed front and 2-piston floating rear
