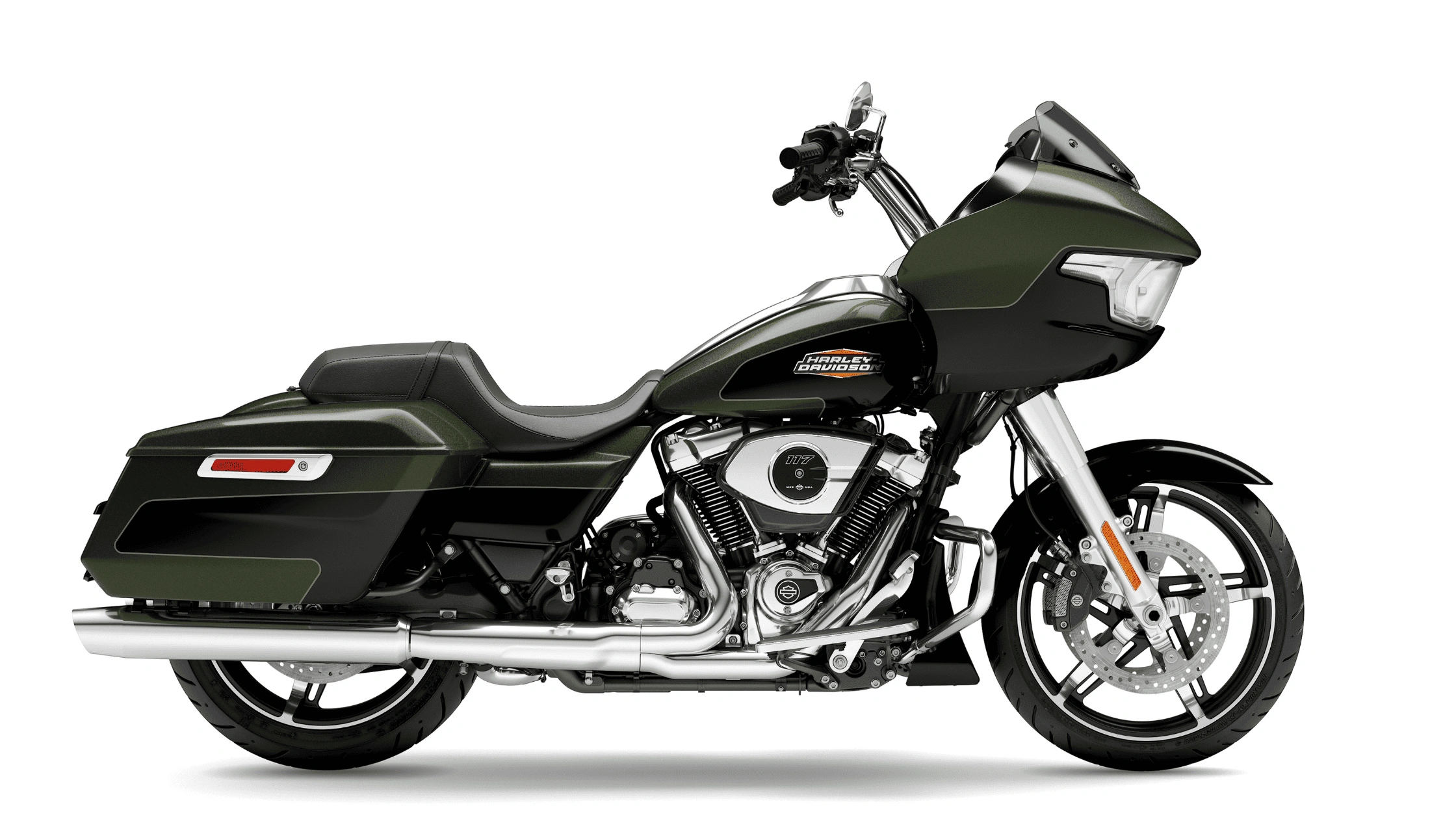

The 2026 Harley-Davidson® Road Glide® is engineered as a touring motorcycle with a focus on mechanical consistency, structured chassis geometry, and integrated electronic systems. The model incorporates a Milwaukee-Eight® 117 engine, a six-speed transmission, and a range of rider-assist technologies designed to support controlled operation across extended distances. Its dimensional layout, weight distribution, and suspension components reflect a configuration intended for highway stability and predictable handling. This motorcycle combines established drivetrain architecture with updated infotainment and safety technologies to support both rider awareness and operational efficiency.
Milwaukee-Eight® 117 Engine Configuration and Output
The 2026 Harley-Davidson® Road Glide® is equipped with a Milwaukee-Eight® 117 engine that delivers a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine uses a bore measurement of 4.075 inches and a stroke of 4.5 inches. A compression ratio of 10.3 to 1 supports efficient combustion and stable power delivery across a moderate RPM range.
The engine produces 130 foot-pounds of torque at 3,250 rpm, providing consistent pulling power during acceleration and highway cruising. Peak output is rated at 105 horsepower at 4,600 rpm. The torque curve is structured to deliver usable performance at lower engine speeds, which supports long-distance riding with reduced need for frequent gear changes.
Valve operation is managed through a pushrod system with overhead valves and hydraulic self-adjusting lifters. Each cylinder includes four valves, allowing improved airflow and combustion efficiency. The lubrication system uses a pressurized dry-sump configuration, which supports engine durability and consistent oil circulation under varying riding conditions.
Fuel delivery is handled by an electronic sequential port fuel injection system. This system ensures accurate fuel metering and supports efficient throttle response. The intake system includes a fiberglass washable air cleaner, designed for durability and reuse. Exhaust gases are routed through a 2-1-2 dual exhaust system with tapered mufflers, contributing to balanced exhaust flow and consistent engine performance.
Six-Speed Transmission and Drivetrain Mechanics
The drivetrain of the 2026 Harley-Davidson® Road Glide® integrates a 6-speed Cruise Drive® transmission that supports efficient power transfer and reduced engine speed during highway operation. Gear ratios are structured to provide progressive acceleration through lower gears and stable cruising in higher gears. The sixth gear ratio of 2.875 enables reduced engine strain at sustained speeds.
The primary drive uses a chain system with a 34 to 46 ratio. The final drive is belt-driven with a 32 to 68 ratio, offering durability and lower maintenance requirements compared to chain-only systems. This configuration supports smooth torque delivery to the rear wheel while minimizing mechanical noise and wear.
A mechanically actuated 10-plate wet clutch with assist and slip functionality is included. This system reduces lever effort and improves control during gear transitions. It also limits rear-wheel instability during downshifting by managing engine braking forces.
Frame Structure and Chassis Geometry
The frame of the 2026 Harley-Davidson® Road Glide® is constructed from mild steel using a tubular design. It incorporates a two-piece stamped and welded backbone with cast and forged junctions that reinforce structural integrity. Twin down tubes contribute to load distribution, and the rear frame section is bolt-on with forged fender supports.
The swingarm is also fabricated from mild steel and uses a two-piece drawn and welded construction with reinforced junctions. This design supports stability under load and contributes to consistent rear-wheel alignment.
The 2026 Harley-Davidson® Road Glide® has a wheelbase of 64 inches, which supports straight-line stability. Steering geometry includes a rake angle of 26 degrees and a fork angle of 29.25 degrees. Trail measurement is 6.8 inches. These values contribute to predictable steering response and stability at higher speeds.
Suspension Design and Travel Specifications
Front suspension is provided by a 49-millimeter Dual Bending Valve fork. This system is designed to improve damping characteristics by managing fluid flow more precisely during compression and rebound. It supports front-end stability during braking and cornering.
The rear suspension consists of dual outboard emulsion shocks with 3 inches of travel. These shocks include preload adjustability, allowing the rider to modify suspension settings based on load conditions. The configuration supports consistent ride height and handling when carrying a passenger or luggage.
Front suspension travel measures 4.6 inches, while rear suspension travel is 3 inches. This balance between front and rear travel contributes to controlled ride comfort and stable handling over varied road surfaces.
Brake System Engineering and Control Systems
The braking system includes dual floating front rotors with a diameter of 12.6 inches and a thickness of 0.18 inches. These rotors are paired with four-piston fixed calipers. The rear brake uses a fixed rotor with a diameter of 11.8 inches and a thickness of 0.28 inches, along with a single caliper.
Anti-lock braking functionality is standard, preventing wheel lock during sudden braking. Electronic linked braking distributes braking force between the front and rear wheels to improve stability and reduce stopping distance under normal conditions.
Additional control systems include traction control, which manages wheel slip during acceleration, and drag-torque slip control, which reduces rear-wheel instability during deceleration. Vehicle hold control is also included, maintaining brake pressure when the motorcycle is stationary on an incline.
Cornering-enhanced systems adjust braking and traction parameters based on lean angle. These systems include cornering anti-lock braking, cornering electronic linked braking, and cornering traction control. A tire pressure monitoring system provides continuous updates on tire conditions, supporting safe operation.
Dimensional Specifications and Weight Distribution
The 2026 Harley-Davidson® Road Glide® measures 94.9 inches in length and 37.2 inches in width, with an overall height of 51.8 inches. Seat height is 26.6 inches when the motorcycle is loaded and 28.3 inches when unladen. These measurements contribute to a lower center of gravity and improved rider accessibility.
Static ground clearance is 5.7 inches. The motorcycle has a running weight of 838 pounds and a shipping weight of 802 pounds. The gross vehicle weight rating is 1,360 pounds, allowing for additional load capacity, including rider, passenger, and cargo.
Luggage capacity is measured at 2.42 cubic feet, providing storage space suitable for touring applications. The distribution of weight and dimensions supports stability during long-distance riding and consistent handling under varying load conditions.
Wheels, Tires, and Road Interface
The 2026 Harley-Davidson® Road Glide® is equipped with cast aluminum wheels. The front wheel measures 19 inches in diameter with a width of 3.5 inches, while the rear wheel measures 18 inches in diameter with a width of 5 inches.
The tires are Dunlop® Harley-Davidson® Series bias blackwall. The front tire specification is 130/60B19, and the rear tire specification is 180/55B18. These tire dimensions support traction, load handling, and stability during extended travel.
The combination of wheel size and tire profile contributes to controlled steering response and consistent contact with the road surface.
Electrical System and Lighting Components
The electrical system includes a sealed 12-volt battery with a capacity of 28 amp-hours and 405 cold cranking amps. This configuration supports reliable engine starting and stable power supply for onboard systems.
Charging is managed by a three-phase 58-amp system, capable of producing up to 754 watts at 13 volts. This output supports the motorcycle’s electronic systems and accessories.
Lighting components use LED technology for the headlamp, tail lamp, and turn signals. LED lighting improves visibility and reduces energy consumption. A USB-C power outlet rated at 15 watts is located in the media storage compartment, allowing for device charging during operation.
Infotainment System and Connectivity Features
The 2026 Harley-Davidson® Road Glide® features the Skyline™ OS infotainment system with a 12.3-inch full-color TFT display. The system integrates digital gauges within the display, presenting information such as air temperature and oil pressure.
Audio output is delivered through two 5.25-inch speakers mounted in the fairing. Each channel is powered at 50 watts, providing consistent audio output at highway speeds.
Connectivity includes Bluetooth® integration for mobile devices and media playback. The system supports Apple CarPlay® through both wired and wireless connections. USB-C connectivity allows for media input and device compatibility.
Navigation functionality is embedded within the system and provides route guidance along with traffic and weather data through a Wi-Fi connection. The infotainment system supports hands-free phone operation and includes text-to-speech functionality for supported languages.
Fuel Capacity and Efficiency Metrics
The 2026 Harley-Davidson® Road Glide® has a fuel capacity of 6 gallons, supporting extended travel distances between refueling stops. A reserve capacity of 1 gallon provides a warning threshold for fuel levels.
Estimated fuel economy is rated at 44 miles per gallon. This efficiency supports long-distance riding while maintaining consistent engine performance.
Fluid capacities include 5 quarts of engine oil with filter, 1 quart for the transmission, 1.1 quarts for the primary chain case, and 0.82 quarts of coolant. These values support proper operation and maintenance of the motorcycle’s systems.
