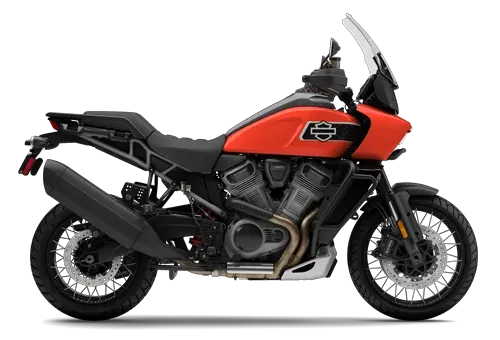

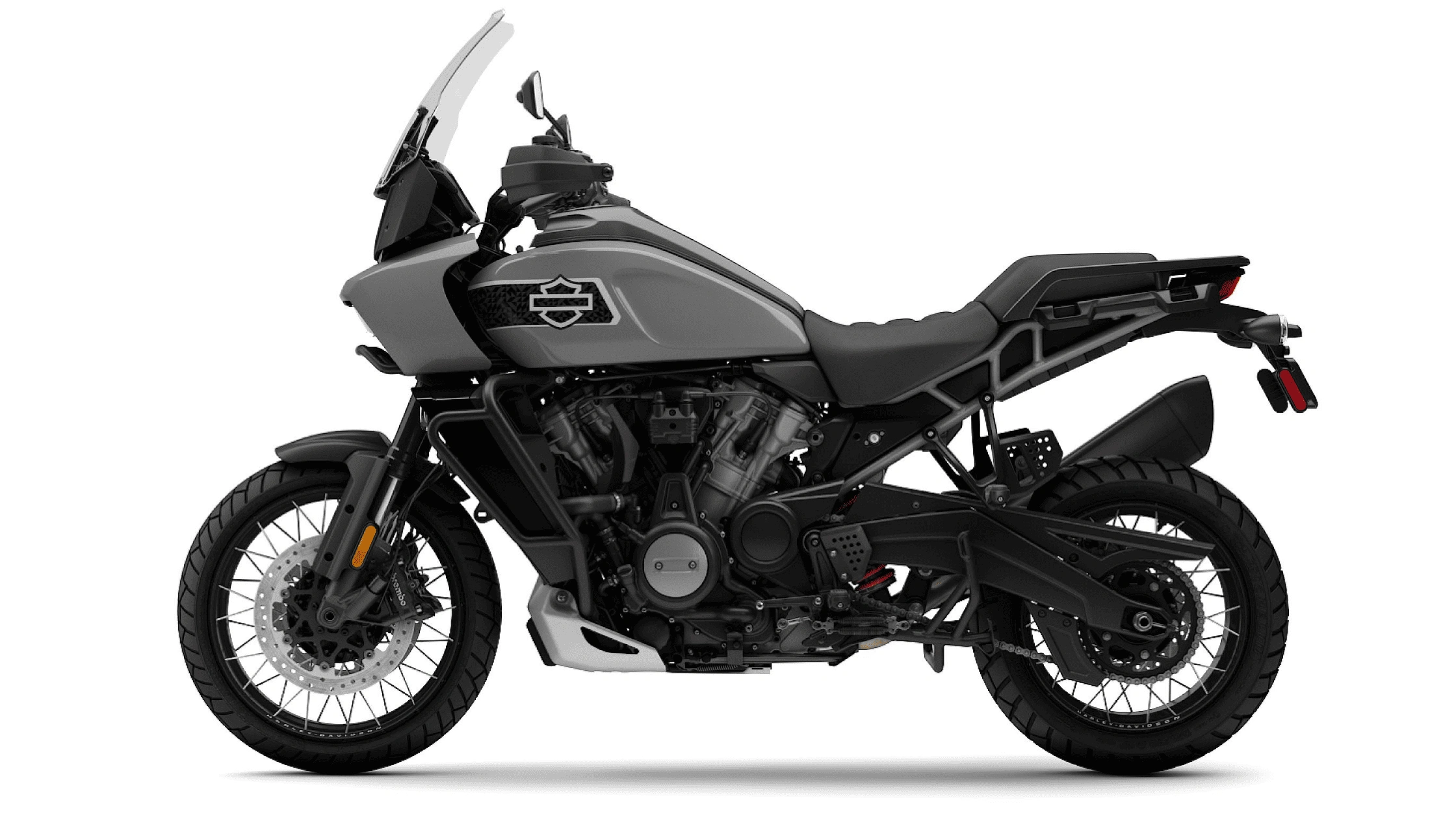

The 2026 Harley-Davidson® Pan America® 1250 Special is designed as an adventure touring motorcycle with a strong emphasis on power delivery, suspension control, rider assistance technology, and long-distance functionality. The model combines a high-output Revolution® Max 1250 engine with electronically controlled suspension systems, advanced rider safety enhancements, and integrated connectivity features. Its chassis dimensions, wheel configuration, braking hardware, and electronic systems support both paved-road touring and mixed-surface riding applications. The motorcycle also incorporates adaptive technology intended to improve handling consistency, traction management, and rider control under varying road conditions.
Revolution® Max 1250 Engine Configuration
The 2026 Harley-Davidson® Pan America® 1250 Special uses the Revolution® Max 1250 engine. This liquid-cooled powertrain has a displacement of 1,252 cc, or 76.4 cubic inches. The engine uses a bore measuring 4.134 inches and a stroke measuring 2.846 inches. The compression ratio is rated at 13.0:1.
The engine architecture includes chain-driven dual overhead camshafts with hydraulic self-adjusting lifters. Intake and exhaust variable valve timing systems are integrated into the cylinder head design, and each cylinder contains four valves. This configuration supports broader torque distribution across the operating range and maintains consistent airflow management at varying engine speeds.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The intake system uses a downdraft arrangement with tuned velocity stacks and washable filter media. The exhaust system follows a 2-into-1-into-1 configuration with a catalyst positioned within the header assembly. Lubrication is handled through a semi-dry sump system.
Performance output is rated at 150 horsepower, or 112 kW, at 8,750 rpm. Engine torque is rated at 94 ft-lb, or 127 Nm, at 6,750 rpm. Torque testing follows the J1349 standard. The engine configuration supports both highway-speed touring and lower-speed maneuvering associated with adventure riding conditions.
Transmission and Drivetrain Specifications
The 2026 Harley-Davidson® Pan America® 1250 Special uses a 6-speed transmission. Gear ratios are configured to balance acceleration, traction management, and highway cruising efficiency. The overall first gear ratio is 13.11, followed by 9.687 in second gear, 7.509 in third gear, 6.057 in fourth gear, 5.08 in fifth gear, and 4.436 in sixth gear.
The primary drive system uses a gear arrangement with a 49/89 ratio. Final drive is managed through a chain system with a 19/48 ratio. The clutch assembly is a mechanical assist-and-slip design with eight wet clutch plates and a 1090 N specification. This clutch design helps reduce rear wheel instability during aggressive deceleration and downshifting while maintaining smoother engagement characteristics.
Frame Structure and Chassis Engineering
The chassis uses a stressed-member high-strength low-alloy steel trellis frame. The structure incorporates stamped, cast, and forged junction sections joined through MIG welding techniques. An aluminum forged mid-structure contributes to overall rigidity while controlling weight distribution.
The motorcycle uses a one-piece cast aluminum swingarm. The wheelbase measures 62.4 inches, while the rake and fork angle are both measured at 25 degrees. The trail is rated at 4.3 inches. These dimensions contribute to directional stability during higher-speed riding and controlled handling during low-speed maneuvering.
Overall vehicle length is 89.4 inches, with a width of 38.4 inches and an overall height of 59.4 inches. Running-order weight is listed at 578 pounds, while shipped weight is rated at 542 pounds. Gross vehicle weight rating is 1,003 pounds. The Front Gross Axle weight rating is 399 pounds, and the rear gross axle weight rating is 665 pounds.
Electronically Controlled Suspension Systems
The front suspension system uses a 47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps are integrated into the assembly. The rear suspension uses a linkage-mounted monoshock equipped with automatic electronic preload control and semi-active compression and rebound damping adjustment.
Optional Adaptive Ride Height technology is available for both front and rear suspension configurations. The optional system automatically adjusts ride height during stopping and low-speed operation. Standard static ground clearance is rated at 6.9 inches, while models equipped with Adaptive Ride Height increase static ground clearance to 8.1 inches.
Front and rear suspension travel are both rated at 7.5 inches. The suspension configuration is intended to maintain wheel contact consistency across uneven terrain while supporting touring stability during extended highway operation.
Seat height varies depending on suspension configuration and adjustment position. Laden seat height ranges from 31.1 inches in the low position to 32 inches in the high position. Models equipped with optional Adaptive Ride Height reduce laden seat height to 30.4 inches in the low setting and 31.4 inches in the high setting. Unladen seat height ranges from 33.4 inches to 34.4 inches in standard configuration and from 32.7 inches to 33.7 inches with Adaptive Ride Height.
Wheel, Tire, and Brake Components
The standard wheel configuration includes satin black cast aluminum wheels. The front wheel diameter measures 19 inches with a width of 3 inches. Rear wheel diameter measures 17 inches with a width of 4.5 inches. Optional anodized aluminum tubeless laced wheels are also available.
The motorcycle uses Michelin® Scorcher Adventure radial tires. Front tire specification is 120/70R19 60V. Rear tire specification is 170/60R17 72V. This tire combination supports stability on pavement while maintaining traction characteristics suited for varied riding surfaces.
The braking system uses radially mounted monoblock 4-piston front calipers paired with dual floating tower-mounted front rotors. The front rotor diameter measures 12.6 inches with a thickness of 0.17 inches. Rear braking uses a floating single-piston caliper and an 11-inch solid uniform expansion rotor with a thickness of 0.2 inches.
Anti-lock Braking System functionality is included as standard equipment. The motorcycle also integrates Electronic Linked Braking technology, which adjusts front and rear braking force distribution during operation.
Integrated Rider Safety Technologies
The 2026 Harley-Davidson® Pan America® 1250 Special includes multiple electronically controlled rider assistance systems. Standard systems include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation.
Cornering-enhanced safety technologies are also integrated into the motorcycle. These include Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. Enhanced Lift Mitigation is also included.
Lean angle capability is rated at 42 degrees on both left and right sides. Lean angle testing follows the J1168 standard.
Electrical Components and Lighting Systems
Electrical power is supplied through a sealed maintenance-free absorbed glass mat battery rated at 12V and 17.5Ah with 310 cold cranking amps at 0°F. Charging is managed through a three-phase 45-amp system capable of producing 390 watts at 13 volts and 1300 rpm, with maximum output reaching 585 watts at 2500 rpm.
Starting is managed through a 0.9 kW electric starter with direct-drive starter motor engagement. Lighting systems use LED technology throughout the motorcycle.
The headlamp assembly uses a Daymaker® Adaptive LED headlamp equipped with a 6-segment LED banking lamp system. Tail and stop lighting uses an all-LED assembly with signature tail lighting. Front and rear turn signals use LED Bullet Turn Signals.
TFT Display and Connectivity Functions
The 2026 Harley-Davidson® Pan America® 1250 Special uses a 6.8-inch TFT color touchscreen display. The display provides speedometer, gear position, odometer, fuel level, tachometer, trip information, ambient temperature, cruise indication, range information, and alert notifications.
Additional alerts include low-temperature alerts, side stand notifications, and tip-over alerts. The display system also supports Bluetooth® connectivity for compatible phone pairing functions.
Bluetooth® integration supports hands-free mobile phone operation, phone and media connectivity, and rider or passenger headset functionality. Navigation capability is accessible through the Harley-Davidson® mobile application. Vehicle information displayed through the interface includes Tire Pressure Monitoring System data, engine temperature, battery voltage, and ambient air temperature.
USB-C charging and instrument updates are supported through a USB-C connection rated at 5V and 3A output.
Fuel Capacity and Operational Efficiency
Fuel capacity is rated at 5.6 gallons, or 21.2 liters. Reserve fuel capacity associated with the warning light system is rated at 1 gallon, or 3.8 liters. Estimated fuel economy is listed at 46 mpg, or 5.1 l/100 km.
Oil capacity with filter measures 4.75 quarts, while coolant capacity is rated at 2.32 quarts. These capacities support extended riding intervals associated with adventure touring applications and long-distance operation.
